OXIDATION & REDUCTION

Photothermochemistry

THE TECHNOLOGY

Discover the innovation
of our photothermochemical equipment

We always use cutting-edge LED technology (UV-C, UV-B, UV-A, visible, IR, etc.) as source of light, several types of light can be integrated into the same device. Remarkably, the emitted radiation intensity can be regulated and the temperature of the LEDs is controlled through forced air convection.

Thanks to its advanced design, this equipment ensures efficient and homogeneous heating, improving the reproducibility of results and contributing to energy efficiency.

Download datasheet

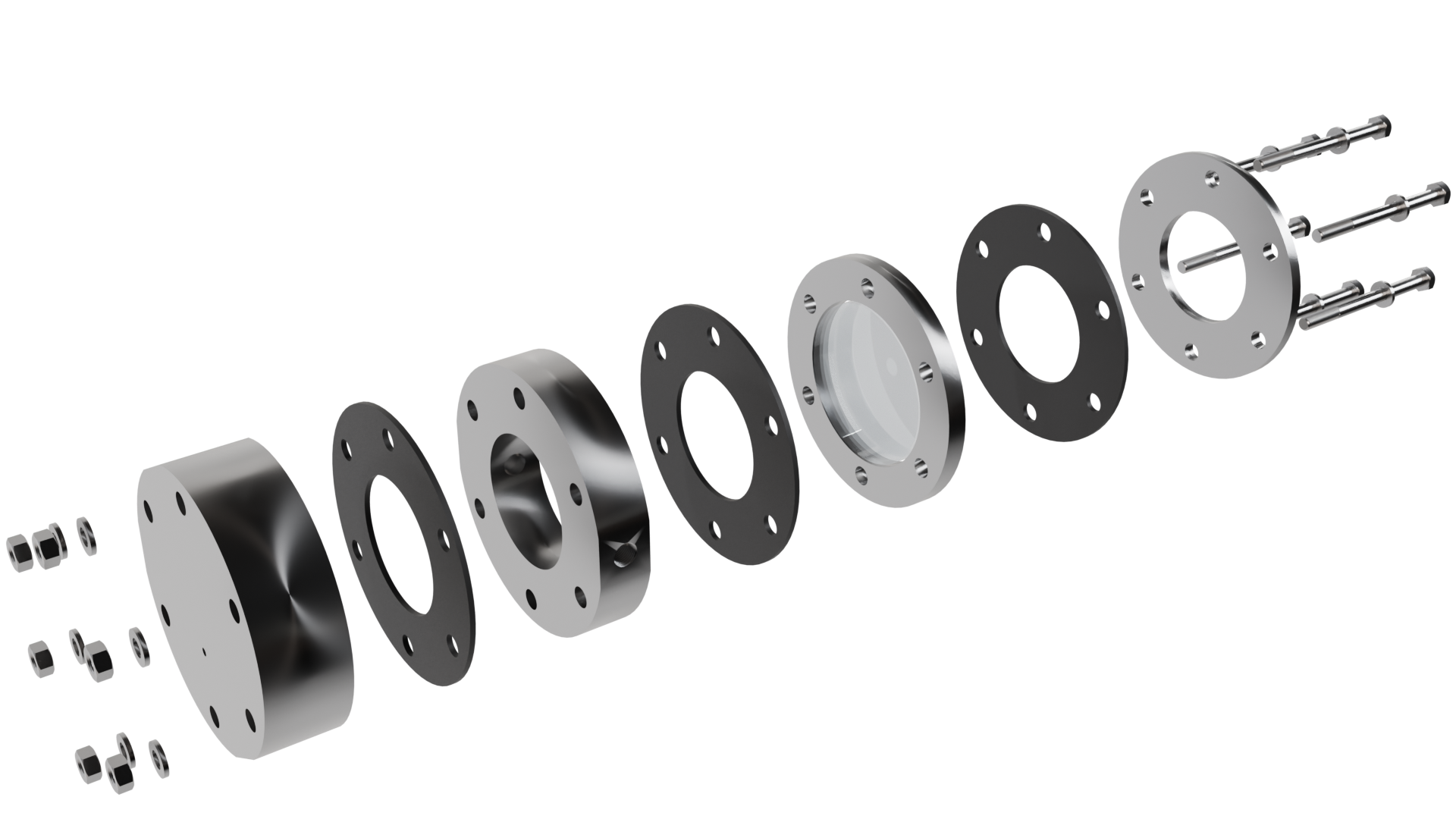

MULTICELL

Discover it here

FEATURES

From cells to complete plants,
always tailor-made

Choose from the following options to customize your equipment based on your needs:

Technology

  • Photothermocatalysis

Scale

  • Laboratory

Connection type

  • Barb fitting
  • Quick plug

Volume / flowrate

  • V: from mL to several L
  • Q: up to several m3/h

Light source configuration

  • External radiation

Number of cartridge heaters

  • Selectable

Materials

  • Stainless steel

Reactor configuration

  • Cell

Operation mode

  • Continuous(24/7)

Radiation type

  • UV-C
  • UV-B
  • UV-A
  • Violet
  • White
  • Blue
  • Green
  • Red
  • NIR
  • FIR
Consult us to customize

REFERENCES

Cell

PETFlab LED275_0.1-365_1scb/T-T20

Country: Spain | Client: Universidad Complutense de Madrid

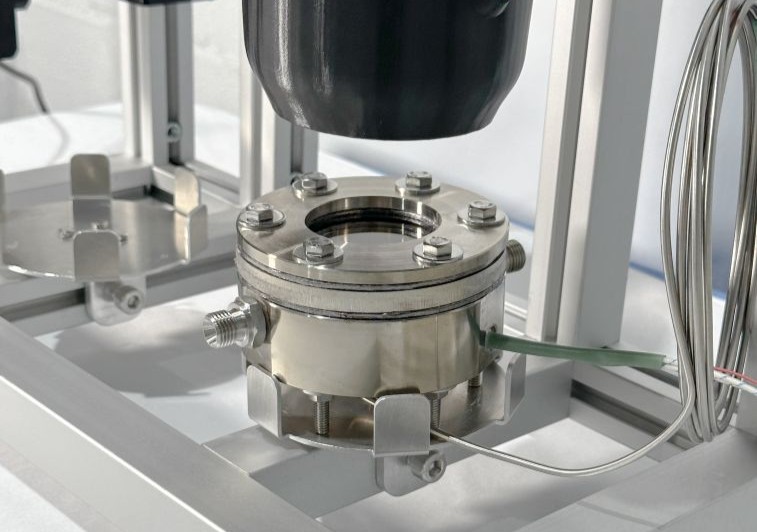

  • 1 plate and frame cell.
  • Illumination area of 20 cm2.
  • Maximum operation temperature: 350 ºC.
  • Maximum operation pressure: 15 bar.

  • 2 lamps with LED technology: 1 for UV-C and 1 for UV-A. LED refrigeration through heat dissipation. Each lamp has independent switching-on type: on/off. 1, or 2 lamps can be used simultaneously.

  • 2 collimating devices. Each of them includes: 1 collimating tube + 1 collimating lens.
  • Regulation of the distance from the LED lamp to the reaction system.

  • Cell complements to work in photochemistry, electrochemistry, photoelectrochemistry, and photofiltration modes.

Cell

PTlab LED365_1-450_1scb/20

Country: Finland | Client: University of Eastern Finland

  • 1 plate and frame cell.
  • Illumination area of 20 cm2.
  • Maximum operation temperature: 350 ºC.
  • Maximum operation pressure: 15 bar.

  • 2 lamps with LED technology: 1 for UV-A and 1 for visible. Each lamp has on/off control. LED refrigeration through a heat sink. 1 or 2 lamps can be used simultaneously.

  • 1 collimation system (compatible with both lamps). The system includes: 1 collimating tube + 1 collimating lens.

  • Regulation of the distance from the LED lamp to the reaction system.

Cell

PTlab LED365_77-450_77m/256

Country: Spain | Client: Universidad de Granada

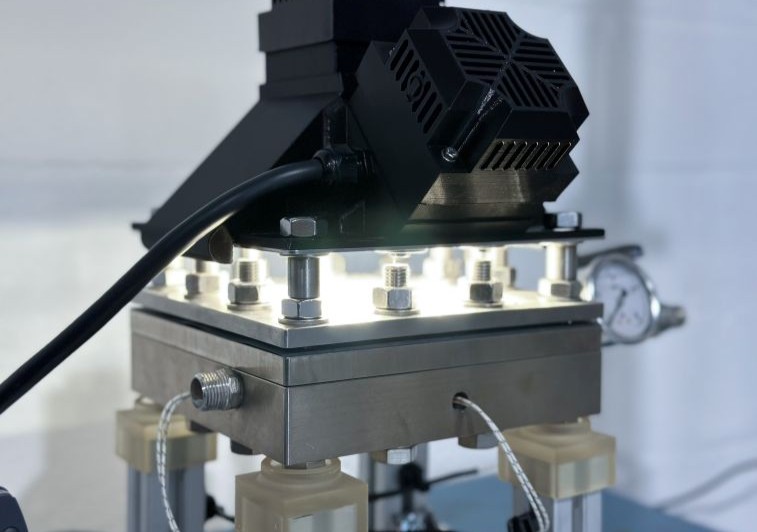

  • Plate and frame configuration.
  • Illumination area 256 cm2.
  • Maximum operating temperature: 430 ºC.
  • Non-pressurizable.
  • Exchangeable lamps with UV-A and visible LED technology.
  • The irradiated total power can be regulated.
  • LEDs refrigeration system through forced air convection.
  • Electric console with PLC for the control of the LED lamps and cartridge heaters.

Cell

PTlab LED365_28-450_28m/100

Country: - | Client: -

  • Plate and frame configuration.
  • Illumination area 100 cm2.
  • Maximum operation temperature: 350 ºC.
  • Maximum operation pressure: 15 bar.
  • Exchangeable lamps with UV-A and visible LED technology.
  • The irradiated total power can be regulated.
  • LEDs refrigeration system through forced air convection.
  • Electric console with PLC for the control of the LED lamps and cartridge heaters.
