ELOXIRAS®

HYBRID Series

MARKET APPLICATION

For large RAS installations

Focused on full scale RAS facilities such as grow-out farms. It helps to increase productivity and reduce water consumption. It has a treatment capacity from 50 to 600 kg feed/day and from 50 - 600 m3.

Consult us to customize

FUNCTIONALITIES

  Concept 4.0
Pre-treatment -
Feed pump -
Reactor
Rectifier
Reactor cleaning system
Post-treatment -
Electrical cabinet with PLC
Manual valves
Automatic valves -
Compressed air system -
ORP monitoring -
pH monitoring -
TAN monitoring - Optional
Total chlorine monitoring -
Temperature control system - Optional
Oxygenation system - Optional
Remote supervision and operation -
Moisture and splash protection Optional Optional



MODELS

Model Reactor Capacity
(kg feed/day)		 Water volume
(m³)		 Flowrate
(m³/h)		 TAN removal
(g TAN/day)		 Disinfection Energy consumption
(kWh/ g TAN)		 Water exchange
(L/ kg feed)
HYBRID-1500 1 x ELOXrc75 50 50 50 1,800 > 3 log 0.16 50 - 200
HYBRID-3000 1 x ELOXrc150 100 100 100 3,600 > 3 log 0.13 50 - 200
HYBRID-6000 1 x ELOXrc225 200 200 200 7,200 > 3 log 0.13 50 - 200
HYBRID-12000 2 x ELOXrc225 400 400 400 14,400 > 3 log 0.13 50 - 200
HYBRID-18000 1 x ELOXrc750 600 600 600 21,600 > 3 log 0.13 50 - 200



NOTE: Values estimated considering water with a salinity of 35 ppt and 4.0 models implemented by Apria Systems

Download datasheet

REFERENCES

ELOXIRAS® HYBRID

ELOXIRAS® HYBRID-3000-Concept

Country: Chile | Client: -

  • 3 units of ELOXIRAS® HYBRID-3000-Concept and a replacement reactor ELOXrc150
  • Cultivated specie: salmon.
  • Maximum treatment flowrate (per reactor): 100 m3/h
  • Maximum treatment capacity (per reactor): 100 kg feed /day
  • Electrical cabinet with PLC.

ELOXIRAS® HYBRID

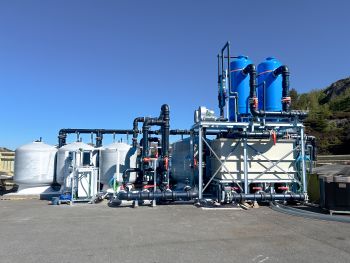

ELOXIRAS® HYBRID-3000-4.0

Country: Norway | Client: MMC First Process

  • Cultivated specie: atlantic salmon.
  • Culture tanks: 1 unit (Vtotal = 50 m3).
  • Maximum biomass density: 48 kg/m3.
  • Maximum treatment flowrate: 65 m3/h.
  • Maximum treatment capacity : 20 kg feed/day*.
  • Continuous online measurement of ORP, pH, and Cl2 total.
  • Electrical cabinet with PLC.
  • Remote monitoring and operation.

*The system is designed to treat significantly larger volumes than the actual application.
