OXIDATION & REDUCTION
Photochemistry
THE TECHNOLOGY
Discover the innovation of our photochemistry equipment
In all our photoreactors we use cutting-edge LED technology as a source of light, promoting treatments with lower energy consumption.
We have different kinds of lights (UV-C, UV-B, UV-A, visible, infrared, etc.) and up to several of them can be integrated into the same source of illumination.
It is remarkable that the emitted radiation intensity can be regulated to adjust it to your needs.
Moreover, all our equipment counts with a forced air convection system to control the LEDs temperature, maximizing their efficiency and useful life.

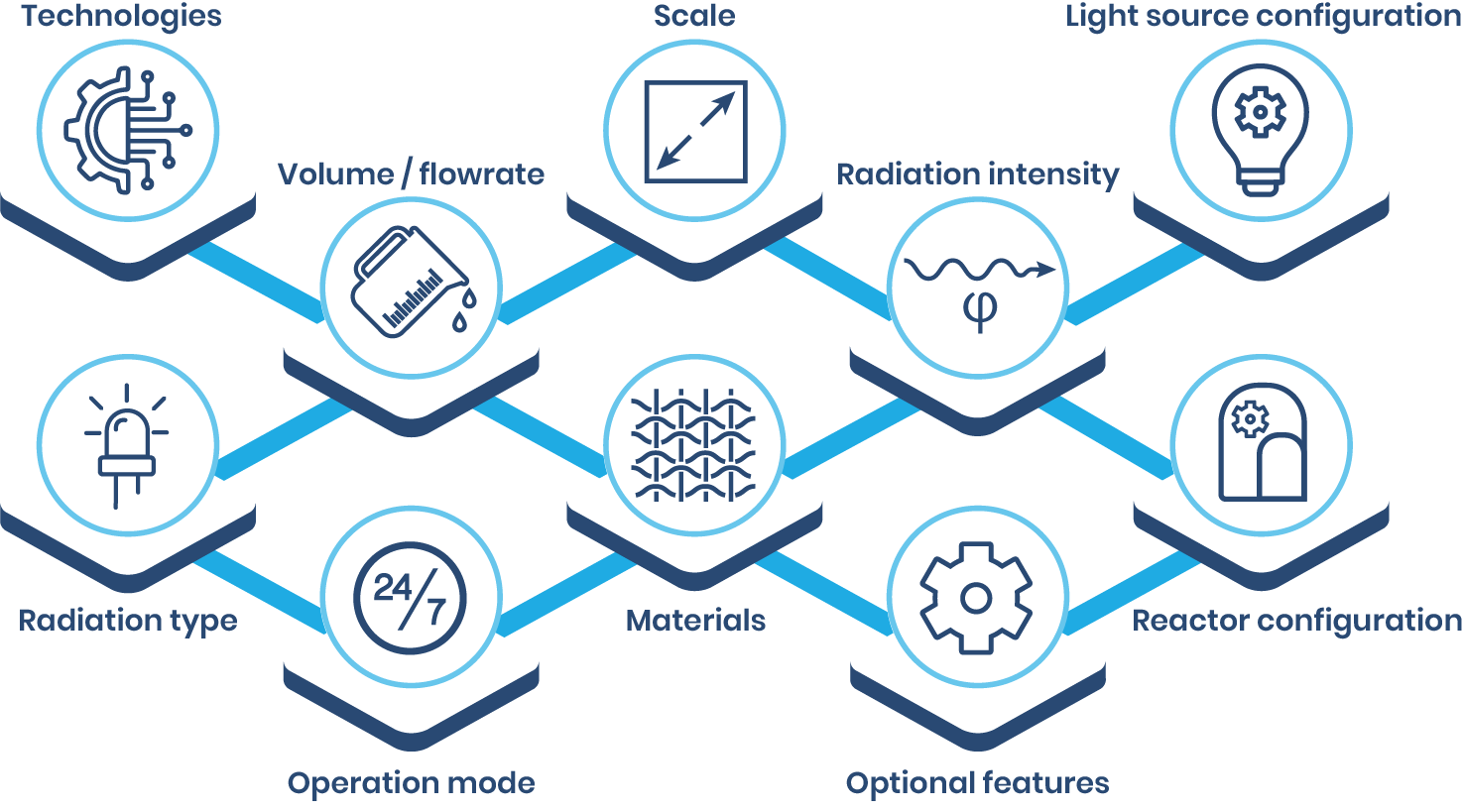

FEATURES
From light sources to complete plants, always tailor-made
Choose from the following options to customize your equipment based on your needs:
Technology
- Photocatalysis
- Photolysis
- Photo-Fenton
- UV/H2O2
Scale
- Laboratory
- Pilot
- Industrial
Light source configuration
- External radiation
- External + internal radiation
- Internal radiation
Volume / flowrate
- V: from mL to several L
- Q: Up to several m3/h
Radiation type
- UV-C
- UV-B
- UV-A
- Violet
- White
- Blue
- Green
- Red
- NIR
- FIR
Materials
- Borosilicate glass
- PP
- PVC
- PVDF
- Quartz
- Stainless steel
- Viton®
Reactor configuration
- Annular
- Cell
- Collimated beam
- CPC
- External radiation
- Immersion
Operation mode
- Alternating
- Batch
- Continuous (24/7)
Optional features
- Automatization
- Filtration system
- Jacketed reaction
- Online measurements (pH, O2, ...)
- Temperature control
PRODUCTS
Reactors
- Flowrate in external annulus
- Up to industrial scale
Annular
- Reflective surface
- LED technology as optional item
CPC
- Allows both batch and continuous operation
Immersion
- Adjustable lamp distance

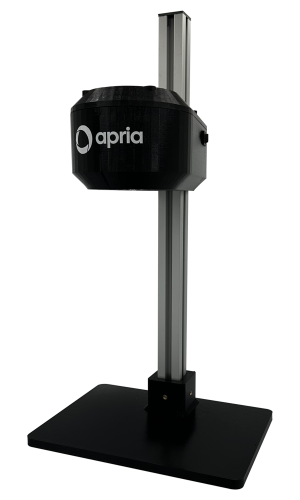

External radiation
Lamps
- 1 LED
- On/off control
- Adjustable distance
LED pointer
- On/off control
- Adjustable lamp distance
- Optional collimation complement
Single LED lamp
- Adjustable LED irradiation intensity through a PLC
MultiLED lamp
MULTICELL
REFERENCES
Annular
Photobench LED365_41a
Country: Spain | Cliente: I.E.S. Gutiérrez Aragón
UV-A LED of adjustable intensity and refrigeration through forced air convection.
- Recirculation pump.
- Continuous online measurement of pH, T, and O2.
- Membrane for the recovery of the photocatalyst.
- Temperature control: heat exchanger and thermostatic bath.
- Ability to operate in continuous/discontinuous mode.
Annular
Photobench LED275_8a
Country: Spain | Client: EURECAT
Annular photoreactor of borosilicate with mirror finish: internal radiation (inner annulus, 4 strips) , UV-C LEDs with adjustable intensity and self-cooling.
- Ozone system.
- Chemical dosing system.
- Continuous online measurement of pH, T, ORP, and conductivity.
- Instrumentation to control flow and pressure.
- Temperature control by heat exchanger.
- PLC operation.
- Control and manoeuver electrical cabinet.
- Assembly mounted on an aluminum frame.
Annular
Photobench LED275_0.8-365_16-450_16a
Country: Spain | Client: Universidad Politécnica de Madrid
2 annular photoreactors with mirror finish. LEDs of adjustable intensity and with their own refrigeration (reactor 1: UV-C LEDs, reactor 2: UV-A, and visible LEDs).
- Recirculation pump.
- Pretreatment by filtration.
- Ozone generation system.
- Air extraction and filtration system.
- Continuous online measurement of pH and T.
- Chemical dosing system.
- Instrumentation for flow and pressure control.
- Control de temperatura a través de un intercambiador de calor y un baño de refrigeración.
- PLC operation.
Annular
Photolab LED365_16-450_16a
Country: Spain | Client: Proquinorte
UV-A LED of adjustable intensity and refrigeration through forced air convection.
- Magnetic stirring.
- Recirculation pump.
- Continuous online measurements of pH, T, and O2.
- Membrane for the recovery of the photocatalyst.
- Instrumentation for flow and pressure control.
- Temperature control with a thermostatic bath.
- Electrical console with PLC for the control of the LED system, stirrer, pump, and analyzer.
Annular
Photobench LED365_224a
Country: Spain | Client: Confidential
- 5 UV-A LED annular lamps with adjustable intensity.
- Operations of the 5 lamps together.
- Lamps refrigeration system through forced air convection.
- Maximum recommended flowrate: 5 m3/h.
- Electrical cabinet with PLC for lamp control.
Cell
Photolab LED365_1-450_1scb/20
Country: Spain | Client: Universidad de Santiago de Compostela
- 1 plate and frame photofiltration cell
- Illumination area of 20 cm2.
2 lamps with LED technology: 1 for UV-A, and 1 for vis. Each type of light has independent switching-on type: on / off. Heat sink LED refrigeraton via heat sink. 1, or 2 lamps can be used simultaneously.
2 collimation system. Each system includes: 1 collimating tube + 1 collimating lens.
- Regulation of the distance from the LED lamp to the reaction system.
Cell complements to work in photochemistry mode.
Cell
Photolab 50
Country: Spain | Client: AIMPLAS
Plate and frame reactor with illumination window.
Probes for operation in 2 flow modes: tangential and cross flow.
- Irradiated area: 50 cm2.
Measuring chamber to introduce a VOC sensor.
Cell
Photolab LED275_0.1-365_1-450_1scb/20
Country: Spain | Client: Universidad Pablo Olavide
- 1 cell with plate and frame configuration.
- Illumination area of 20 cm2.
3 lamps with LED technology: 1 for UV-C, 1 for UV-A, and 1 for vis. Each type of light has independent switching-on and adjustable total irradiated power. 1, 2 or 3 lamps can be used simultaneously.
3 collimation systems (one for each lamp). Each system includes: 1 collimating tube + 1 collimating lens.
- Adjustment of the distance of the LED lamps to the reaction system.
With sample holders for the colocation of beakers of two sizes and a photochemical cell.
- 1 photochemical cell with frame and plates configuration and illumination window.
- 3 independent stirring systems.
- Electric console with PLC for the control of the LED.
Cell
Photolab LED365_14-450_16m/100
Country: Spain | Client: Instituto de Cerámica y Vidrio (ICV-CSIC)
Plate and frame reactor with illumination window.
- Irradiated area: 100 cm2.
- Illumination system with UV-A and visible LEDs with adjustable intensity and refrigeration through forced air convection.
- Both types of irradiation can be used independiently or simultaneously.
- Electric console with PLC for the control of the LED irradiation system.
Cell
Photolab LED365_2-450_2m
Country: Spain | Client: Proquinorte
Exchangeable lamps with UV-A and vis LEDs with adjustable intensity and refrigeration through forced air convection.
- Methacrylate cell with stainless steel external clamping plates.
- Electric console with PLC for the control of the lamps.
Collimated beam
Photolab LED265_0.1-365_1-450_1cb
Country: Spain | Client: Universidad de Vigo
3 lamps with LED technology: 1 for UV-C, 1 for UV-A, and 1 for vis. Each type of light has independent switching-on and adjustable total irradiated power. 1, 2 or 3 lamps can be used simultaneously.
3 collimation systems (one for each lamp). Each system includes: 1 collimating tube + 1 collimating lens.
With sample holder with 3 wells for the colocation of Petri dishes.
- Regulation of the distance from the LED lamp to the reaction system.
- Electric console with PLC for the control of the LED.
- External protective case.
Collimated beam
Photolab LED365_1-450_1-850_1cb
Country: Spain | Client: Ciemat
3 lamps with LED technology: 1 for UV-A, 1 for vis and 1 for IR. Each type of light has independent switching-on and adjustable total irradiated power. 1, 2 or 3 lamps can be used simultaneously.
3 collimation systems (one for each lamp). Each system includes: 1 collimating tube + 1 collimating lens.
- With sample holder with 3 wells for the colocation of reactors for gas phase.
- Regulation of the distance from the LED lamp to the reaction system.
- Electric console with PLC for the control of the LED.
- External protective case.
Collimated beam
Photolab LED275_0.01-300_0.03-365_1-450_1cb
Country: Spain | Client: Plataforma Solar de Almería
4 lamps with LED technology: 1 for UV-C, 1 for UV-B, 1 for UV-A, and 1 for vis. Each type of light has independent switching-on and adjustable total irradiated power. 1, 2, 3 or 4 lamps can be used simultaneously.
4 collimation systems (one for each lamp). Each system includes: 1 collimating tube + 1 collimating lens.
- With sample holder with 4 wells for the colocation of Petri dishes.
- Regulation of the distance from the LED lamp to the reaction system.
- Electric console with PLC for the control of the LED.
- External protective case.
- It includes a stirring system.
Collimated beam
Photolab LED365_1-450_1-850_1cb
Country: Spain | Client: Confidential
3 lamps with LED technology: 1 for UV-A, 1 for vis and 1 for IR. Each type of light has independent switching-on and adjustable total irradiated power. 1, 2 or 3 lamps can be used simultaneously.
3 collimation systems (one for each lamp). Each system includes: 1 collimating tube + 1 collimating lens.
- With sample holder with 3 wells for the colocation of Petri dishes.
- Regulation of the distance from the LED lamp to the reaction system.
- Electric console with PLC for the control of the LED.
- External protective case.
- It includes a stirring system.
Collimated beam
Photolab LED275_0.01-300_0.03-365_1cb
Country: Spain | Client: Universidad de Cádiz
3 lamps with LED technology: 1 for UV-C, 1 for UV-B and 1 for UV-A. Each type of light has independent switching-on and adjustable total irradiated power. 1, 2 or 3 lamps can be used simultaneously.
3 collimation systems (one for each lamp). Each system includes: 1 collimating tube + 1 collimating lens.
- With sample holder with 3 wells for the colocation of Petri dishes.
- Regulation of the distance from the LED lamp to the reaction system.
- Electric console with PLC for the control of the LED.
- External protective case.
- It includes a portable radiometer.
CPC
Photobench LED275_4-365_44-450_44a/CPC2/Elecbench M-T155/Elecbench A-A600
Country: France | Client: Aix-Marseille Université (AMU) and Cité de l'Innovation et des Savoirs Aix-Marseille (CISAM)
3 annular photoreactors with UV-C, UV-A and visible LEDs. With adjustable intensity and self-cooling.
- 1 solar CPC photoreactor.
- 1 ozone system.
1 electrocoagulation cell. Aluminum electrodes with approximate useful area of 600 cm2.
1 electrooxidation cell. MMO and Ti electrodes with approximate useful area of 155 cm2.
- 1 chemical dosing system.
- Continuous online measurement of pH, T, ORP, and conductivity.
- Instrumentation to control flow and pressure.
- Temperature control by heat exchanger.
- Control and maneuver electrical cabinet, pperation through PCL.
- Assembly mounted on aluminum frame.
CPC
Photobench LED275_0.4-365_16a/CPC1
Country: France | Client: Centre National de la Recherche Scientifique (CNRS).
- Pilot plant scale.
- 2 annular photoreactors with mirror finish, UV-C, UV-A, and visible LED with adjustable intensity and own refrigeration.
- 1 solar CPC photoreactor with radiometer.
- Radiometer.
- Filtration system for catalyst recovery.
- 2 chemicals dosing systems.
- Recirculation and filtration pumps.
- Continuous online measurement of pH, T, and O2.
- Membrane for photocatalyst recovery.
- Instrumentation for pressure and flow control.
- Temperature control with a heat exchanger.
- Operation through PLC.
- Electric and operation cabinet.
- Aluminum structure for the whole equipment.
CPC
Photobench LED365_48-450_48a/CPC2
Country: Spain | Client: Universidad Politécnica de Valencia
2 annular photoreactors with mirror finish, UV-C, UV-A, and visible LED with adjustable intensity and own refrigeration.
- 1 solar CPC photoreactor with radiometer.
- Filtration system in two stages: prefiltration and/or microfiltration.
- 2 chemicals dosing systems.
- Instrumentation for pressure and flow control.
- Temperature control with a heat exchanger.
- Operation through PLC.
CPC
Photobench LED365_64a/CPC5
Country: Spain | Client: EMUASA y ESAMUR
- 2 annular photoreactors with UV-A LED of adjustable intensity.
- 1 solar CPC photoreactor with radiometer.
- Continuous online measurement of pH, T, O2, and ORP.
- Membrane for the recovery of the photocatalyst.
- Temperature control with a heat exchanger.
- Instrumentation for pressure and flow control.
- Automatized operation: PLC, automatic valves, level sensors, etc.
Immersion
Photolab LED275_4-365_18i
Country: Spain | Client: Gaiker
- Reactor.
UV-C and UV-A LED technology immersion lamps. Cooled by forced air convection and without irradiantion intensity regulation.
- External protective case.
- Electric console for switching the equipment on and off and controlling the temperature of the LEDs.
- Radiometer.
Immersion
Photolab LED365_19-450_19i
Country: Spain | Client: Iberlabo
- Jacketed reactor.
LED immersion lamp: UV-A and visible. With adjustable intensity and refrigeration through forced air convection.
- External protective case.
- Aereation system: air evacuation ring, air injection chamber.
- Electric console with PLC for the control of the LED system.
Immersion
Photolab LED365_58i
Country: Spain | Client: CETIM
- Jacketed feed tank with magnetic stirring.
- Centrifugal pump.
UV-A LED immersion reactor. With adjustable intensity and refrigeration through forced air convection.
- External protective case.
- pH and temperature measurement system.
- Instrumentation for flowrate and pressure control.
- Electric console with PLC for the control of the LED system.
Immersion
Photolab LED275_3-365_38i
Country: Spain | Client: Universidad Politécnica de Madrid
- Quartz jacketed reactor.
Interchangeable LED immersion lamps: 1 UV-C and 1 UV-A. With adjustable intensity and refrigeration through forced air convection.
- External protective case.
- Electric console with PLC for the control of the LED system.
- Aereation system: air evacuation ring, air injection chamber.
Immersion
Photolab LED365_19-457_22-523_7-623_15i
Country: Spain | Client: Universidad de Córdoba
Borosilicate glass immersion reactor with internal mirror finish and external protective casing.
4 interchangeable LED lamps with UV-A, blue, green and red radiation. Adjustable intensity and cooling by forced air convection.
- Jacketed tank.
- Magnetic stirring.
- Pervaporation system.
- On line measurement of pH, T, and O2.
- Temperature control by cooling bath.
- Chemical dosing system.
Electrical and control cabinet for operation and monitoring/recording of variables.
Unit assembled on an anodized aluminum table-top frame.
Immersion
Photolab LED275_1i
Country: Spain | Client: Universidad Autónoma de Madrid
- Quartz jacketed reactor.
UV-C LED immersion lamp of adjustable intensity and refrigeration through forced air convection.
- External protective case.
- Electric console with PLC for the control of the LED system.
- Aereation system: air evacuation ring, air injection chamber.
Immersion
Photolab LED365_6-450_6i
Country: Finland | Client: University of Eastern Finland
- CSTR photoreactor made of borosilicate with mirror finish.
UV-A and vis LED immersion lamp with adjustable intensity and refrigeration through forced air convection.
Electrical console with PLC for the control of the LED lamp.
Magnetic stirring.
- Aeration system: air evactuation ring and air injection chamber.
Immersion
Photolab LED275_2-365_13i
Country: Italy | Client: Polytechnic University of Marche
- Silver CSTR photoreactor made of borosilicate with mirror finish.
UV-C and UV-A LED immersion lamp with adjustable intensity and refrigeration through forced air convection.
Electrical console with PLC for the control of the LED lamp.
Magnetic stirring.
- Aeration system: air evactuation ring and air injection chamber.
Immersion
Photolab LED275_0.2-365_14i
Country: France | Client: Centre National de la Recherche Scientifique (CNRS)
- Silver CSTR photoreactor made of borosilicate with mirror finish.
- UV-A and UV-C LED of adjustable intensity and refrigeration through forced air convection.
- External protective case.
- Electrical console with PLC for the control of the LED lamp.
- Magnetic stirring.
- Aeration system: air evacuation ring and air injection chamber.
External radiation
Photolab LED365_24-450_24er
Country: Spain | Client: Universidad Complutense de Madrid
- 1 lamp with UV-A LED technology, without intensity adjustment and with cooling by heat dissipation.
- 1 lamp with vis LED technology, without intensity adjustment and with cooling by heat dissipation.
- Feed pump.
- Electrical console for the control of the lamps and the pump.
- Instrumentation for flowrate and pressure control.
External radiation
Photolab LED275_5er
Country: Spain | Client: AIDISA - Asociación para la investigación Desarrollo e Innovación del Sector Agroalimentario.
- Lamp with LED technology composed of 49 UV-C LEDs.
- Adjustable total irradiated power.
- LED refrigeration through forced air convection system.
- Regulation of the distance from the lamp to the sample.
- Anti-splash system for the protection of LEDs.
- Electric console with PLC for the control of the lamp.
External radiation
Photolab LED365_16er
Country: Spain | Client: Polytechnic University of Madrid
- Cubic reactor illuminated in 5 of its faces.
- UV-A LED lamp of adjustable intensity (formed by 5 plates).
- Refrigeration through forced air convection.
- Electrical console with PLC for the control of the LEDs.
Support for the collocation of the photocatalyst (photocatalyst provided by the client).
- Pump for the recirculation of the gas.
- Instrumentation for flow and pressure control.
External radiation
Photolab LED365_24-45_24er
Country: Spain | Client: Proquinorte
- External exchangeable LED lamps of adjustable intensity: UV-A and vis.
- LED refrigeration through forced air convection.
- Electrical console with PLC for the control of the LED.
- Magnetic stirring.
External radiation
Photolab LED380_1er
Country: Spain | Client: Proquinorte
UV-A LED in multistrip distirbution (10 strips) and selectable power.
- Magnetic stirring.
- Continuous online measurements of pH, T, and O2.
- External protective case.
- Distribution maneuver panel
Lamp
Photolab LED623_4p
Country: - | Client: -
- Pointer lamp with LED technology .
- Red light (623 nm).
- LED refrigeration through a heat dissipation system.
Lamp
Photolab LED365_10m
Country: - | Cliente: -
- Lamp with UV-A LED technology (365 nm)
- LEDs refrigeration through forced air convection.
- Intensity regulation through the distances between the lamp and the reaction system.
- Electronic console for the control of the lamp and LED temperatura.
Lamp
Photolab LED365_1s
Country: Spain | Client: Universidad de Córdoba
- Lamp with UV-A LED technology (365 nm).
- Cooling by heat dissipation.
- Adjustment of the distance of the LED lamps to the reaction system.
Lamp
Photolab LED850_1s
Country: Portugal | Client: Universidade NOVA de Lisboa
- Lamp with IR LED technology (850 nm).
- Cooling by heat dissipation.
- Adjustment of the distance of the LED lamps to the reaction system.
Lamp
Photolab LED450_1s
Country: Italy | Client: Università Politecnica delle Marche
- Lamp with vis LED technology (450 nm).
- Cooling by heat dissipation.
- Adjustment of the distance of the LED lamps to the reaction system.
Lamp
Photolab LED450_1s
Country: Spain | Client: Universidad Pablo Olávide
- Lamp with vis LED technology (450 nm).
- Cooling by heat dissipation.
- Adjustment of the distance of the LED lamps to the reaction system.
Lamp
Photolab LED265_0.1scb // Photolab LED275_0.1scb
Country: Spain | Client: Universidad Politécnica de Madrid
- Lamps with LED technology: 1 for UV-C (265 nm) and 1 for UV-C (275 nm).
- Cooling by heat dissipation.
- Adjustment of the distance of the LED lamps to the reaction system.
- Interchangeable collimation complement including 1 collimating tube and 1 collimating lens.
Lamp
Photolab LED365_0.1s // Photolab LED450_1s
Country: Spain | Client: Universidad Pablo Olávide
- Lamps with LED technology: 1 for UV-A (365 nm) and 1 for vis (315 lumens).
- Cooling by heat dissipation.
- Adjustment of the distance of the LED lamps to the reaction system.
Lamp
Photolab LED365_3-405_3-450_3-850_3m
Country: Spain | Client: Ciemat
4 exchangeable lamps with LED technolog: 1 for UV-A, 1 for violet, 1 for visible, and 1 for IR. Each type of light has adjustable total irradiated power and refrigeration through forced air convection. The lamps cannot be used simultaneously.
- Regulation of the distance from de LED lamps to the reactio system (cell provided by the client).
- Electrical console with PLC for the control of the lamps.
