Membranes

THE TECHNOLOGY

Discover the innovation of our membrane technology equipment

Our experts can help you find the most suitable membrane technology to meet your application needs. We have extensive experience in the design, construction, and commissioning, from laboratory to industrial scale, of the following technologies:

Pressure

  • Microfiltration
  • Ultrafiltration
  • Nanofiltration
  • Reverse osmosis

Concentration

  • Pressure retarded osmosis
  • Forward osmosis
  • Gas permeation
  • Reverse electrodialysis

Electric potential

  • Electrodialysis
  • Reversible electrodialysis

Temperature

  • Membrane distillation

FEATURES

From cells to complete plants, always tailor-made

Choose from the following options to customize your equipment based on your needs:

Technology

  • Electrodialysis (ED)
  • Forward osmosis (FO)
  • Gas permeation (GP)
  • Membrane distillation (MD)
  • Microfiltration (MF)
  • Nanofiltration (NF)
  • Pressure retarded osmosis (PRO)
  • Reverse osmosis(RO)
  • Ultrafiltration (UF)

Scale

  • Laboratory
  • Pilot
  • Industrial

Connection type

  • Barb fitting
  • Quick plug

Volume / flowrate

  • Selectable

Module configuration

  • Spiral
  • Hollow fibre
  • Plate and frame
  • Tubular

Materials

  • Membrane: ceramic and polymeric
  • Case: PC, PP, stainless steel
  • Sealing gaskets: EPDM, TPU, Viton®

Optional features

  • Automatization
  • Online measurement (pH, O2, conductivity, etc.)
  • Temperature control

Operation mode

  • Recirculation
  • Continuous (24/7)
Consult us to customize

APPLICATIONS

Membrane technology for multiple uses

  • Carbon dioxide capture
  • Chemical separation and purification
  • Drinking water purification
  • Energy generation
  • Food and beverage product filtration
  • Gas separation and purification
  • Hydrogen production
  • Seawater desalination
  • Solvent removal in the chemical industry
  • Wastewater treatment
  • Water disinfection

Download datasheet

REFERENCES

ED
FO
GP
MD
MF
NF
PRO
RO
UF


ED



Memlab ED

Country: Spain | Client: Proquinorte

  • Operation in bipolar membrane mode.
  • 4 storage tanks.
  • Power supply.
  • Temperature control: thermostatic bath.
  • Temperature control: thermostatic bath.



ED



Memlab ED

Country: Spain | Cliente: Universidad de Cantabria

  • Operation in bipolar membrane mode.
  • 4 storage tanks.
  • Power supply.
  • Temperature control: thermostatic bath.
  • Instrumentation for flow rate, pressure and temperature control.



FO



Memlab FO-100

Country: Spain | Client: Plataforma Solar de Almería

  • Forward osmosis cell with the possibility to work in pressure retarded osmosis.

  • High / low pressure pumps with flow control.
  • Jacketed tanks with conductivity control and regulation.
  • Instrumentation flow rate, pressure, and temperature control.
  • Temperature control with a thermostatic bath.



FO



Memlab FO-140

Country: Australia | Client: University of Technology Sydney

  • FO cell with the possibility to work at PRO.
  • High / low pressure pumps with flow control.
  • Jacketed tanks with conductivity control and regulation.
  • Instrumentation flow rate, pressure, and temperature control.
  • Temperature control with a thermostatic bath.



FO



Memlab FO-23000

Country: Spain | Client: Confidential

  • Technologies: NF with the possibility to work at FO (both stages can operate together or separately).
  • Treatment flow rate: 120 L/h.
  • Membrane modules: 1 spiral-wound (NF) + 2 hollow fiber (FO).
  • Automatized operation through PLC.
  • Online measurement of conductivity, pH, temperature, flow rate, and pressure.
  • Temperature control with a heat exchanger.



GP



Membench GP-470

Country: Spain | Cliente: Aditya Carbon

  • Membrane module: hollow-fiber.
  • Borosilicate serpentine heat exchanger.
  • Instrumentation for flow rate, pressure, and temperature control.
  • Pretreatment via filtration in porous media.
  • Control and maneuver electrical cabinet.



GP



GP-120

Country: Spain | Client: Confidential

  • Two compartments.
  • Membrane total area: 120 cm2.
  • Treatment flowrate: 12 L/h.
  • Possibility of including a thermocouple inside.



MD



Memlab MD-42

Country: Spain | Client: Universidad Politécnica de Valencia

  • Operation in DCMD and AGMD.
  • Plate and frame configuration.
  • Membrane area: 42 cm2.
  • Maximum operation flow rate: 210 L/h.
  • Maximum operation pressure: 5 bar.
  • Maximum operation temperature: 80 ºC.
  • Hot/cold side feed tanks with heating thermostat / cooling system.
  • Temperature control by cooling bath.
  • Instrumentation for flow rate, pressure, and temperature control.



MD



Memlab MD-250

Country: England | Client: Manchester University

  • Operation in DCMD and AGMD.
  • Storage tank with resistance heating system and thermostat.
  • Tank with coil and chiller cooling systems with external temperature control.
  • Instrumentation flow rate, pressure, and temperature control.



MD



Memlab MD-250

Country: Spain | Client: Plataforma Solar de Almería

  • Operation in DCMD and AGMD.
  • Storage tank with resistance heating system and thermostat.
  • Tank with coil and chiller cooling systems with external temperature control.
  • Instrumentation flow rate, pressure, and temperature control.



MD



Memlab MD-250

Country: Spain | Client: Industrias Químicas del Ebro / Universidad de Zaragoza

  • Operation in DCMD and AGMD.
  • Storage tank with resistance heating system and thermostat.
  • Tank with coil and chiller cooling systems with external temperature control.
  • Instrumentation flow rate, pressure, and temperature control.



MD



Memlab MD-250

Country: Spain | Client: Universidad de Cádiz

  • Operation in DCMD and AGMD.
  • Storage tank with resistance heating system and thermostat.
  • Tank with coil and chiller cooling systems with external temperature control.
  • Instrumentation flow rate, pressure, and temperature control.



MD



MD-500

Country: Spain | Client: Universidad de Cádiz

  • Operation in DCMD and AGMD.
  • Two compartments.
  • Total membrane area: 500 cm2.
  • Flow rate: 600 L/h per compartment.



MF



Memlab MT-100

Country: Spain | Client: Universidad Politécnica de Madrid

  • It allows to apply different technologies.
  • Plate and frame configuration.
  • Membrane area: 100 cm2.
  • Maximum operation pressure: 20 bar.
  • Maximum operation temperatura: 65 ºC
  • High pressure pump.
  • Instrumentation for flow rate and pressure control.



MF



Memlab MT-20

Country: Portugal | Client: Universidade da Beira Interior

  • It allows the application of different technologies: MF, NF, UF, and RO.
  • Plate and frame configuration.
  • Membrane area: 20 cm2.
  • Maximum operation pressure: 70 bar.
  • Maximum operation temperature: 40 ºC.
  • High pressure pump.
  • Instrumentation for flow rate and pressure control.



MF



Memlab MF-410

Country: Spain | Client: Dynasol Elastómeros S.A.

  • Membrane module: tubular ceramic.
  • Treatment flowrate: 3 - 10 L/h.
  • Thermostatic and pressurized storage tank.
  • Measurement and adjustment of inlet temperature, flowrate, and pressure.
  • Measurement of permeate flowrate.



MF



Memlab MT-196

Country: Spain | Client: Universidad Politécnica de Cataluña

  • It allows to apply different technologies: MF, NF.
  • Plate and frame configuration.
  • Membrane area: 196 cm2.
  • Maximum operation flowrate: 600 L/h.
  • Maximum operation pressure: 20 bar.
  • Maximum operation temperatura: 65 ºC



MF



MT-20

Country: Spain | Client: Funditec

  • Plate and frame configuration.
  • Possibility to be illuminated by external radiation thanks to its illumination window.
  • Operation mode: crossflow.
  • Membrane area: 20 cm2.
  • Maximum pressure: 20 bar (high-pressure side), 1 bar (low-pressure side).
  • Maximum temperature: 40ºC.



MF



MT-14

Country: Spain | Client: Instituto Tecnológico de Producto Infantil y Ocio (AIJU)

  • It allows to apply different technologies: MF, NF, UF, RO.
  • Plate and frame configuration.
  • Operation mode: crossflow.
  • Membrane area: 14 cm2
  • Maximum flowrate: 100 L/h.
  • Maximum pressure: 80 bar.
  • Maximum temperature: 40ºC.



MF



Memlab MT-14

Country: Spain | Client: Instituto Tecnológico de Producto Infantil y Ocio (AIJU)

  • Tangential filtration module to work with RO, UF, NF, and MF technologies.
  • Maximum treatment flowrate: 100 L/h.
  • Pressure measurement at module inlet and outlet.
  • Flow measurement at module outlet (rejection).



MF



MT-140

Country: Spain | Client: Funditec

  • It allows to apply different technologies: MF, NF, UF, FO, RO, PRO.
  • Plate and frame configuration.
  • Membrane area: 140 cm2.
  • Maximum flow: 1 m3/h.



NF



Memlab NF-26000

Country: Spain | Client: Confidential

  • Technologies: NF with the possibility to work at FO (both stages can operate together or separately).
  • Treatment flow rate: 120 L/h.
  • Membrane modules: 1 spiral-wound (NF) + 2 hollow fiber (FO).
  • Automatized operation through PLC.
  • Online measurement of conductivity, pH, temperature, flow rate, and pressure.
  • Temperature control with a heat exchanger.



NF



Memlab NF-74300

Country: Spain | Client: Universidad Autónoma de Madrid

  • Tecnology: NF with the possibility to work at RO.
  • NF module membrane area: 7.43 m2.
  • RO module membrane area: 2.40 m2.
  • High-pressure pump.
  • Pretreatment MF system.
  • Feed and RO permeate storage tanks.
  • Instrumentation for flowrate and pressure control.
  • Electrical and control cabinet.



PRO



Memlab PRO-100

Country: Spain | Client: Plataforma Solar de Almería

  • PRO cell with the possibility to work at FO.
  • High / low pressure pumps with flow control.
  • Jacketed tanks with conductivity control and regulation.
  • Instrumentation flow rate, pressure, and temperature control.
  • Temperature control with a thermostatic bath.



PRO



Memlab PRO-140

Country: Australia | Client: University of Technology Sydney

  • PRO cell with the possibility to work at FO.
  • High / low pressure pumps with flow control.
  • Jacketed tanks with conductivity control and regulation.
  • Instrumentation flow rate, pressure, and temperature control.
  • Temperature control with a thermostatic bath.



RO



Memlab RO-83

Country: Spain | Client: Universidad de Zaragoza

  • Pretreatment through particle filtration.
  • Temperature control system.
  • Operation mode: Crossflow.
  • Measurement of flow, temperature, pressure, and level.
  • Electrical console with data recording.



RO



Membench RO-79000

Country: Spain | Client: I.E.S. Gutiérrez Aragón

  • RO technology with an additional UF technology.
  • Treatment flowrate: 1 – 2 m3/h.
  • Membrane module: dead-end hollow fiber in spiral wound.
  • Pretreatment via filtration in porous media.
  • Automatized operation through PLC.
  • On-line measurement of produced water quality and operating conditions.



RO



Memlab RO-24000

Country: Spain | Client: Universidad Autónoma de Madrid

  • Tecnology: RO with the possibility to work at NF.
  • RO module membrane area: 2.40 m2.
  • NF module membrane area: 7.43 m2.
  • High-pressure pump.
  • Pretreatment MF system.
  • Feed and RO permeate storage tanks.
  • Instrumentation for flowrate and pressure control.
  • Electrical and control cabinet.



UF



Membench UF-400000

Country: Spain | Client: I.E.S. Gutiérrez Aragón

  • Technologies of UF with an additional of RO.
  • Treatment flowrate: 1 – 2 m3/h.
  • Membrane module: dead-end hollow fiber in spiral wound.
  • Pretreatment via filtration in porous media.
  • Automatized operation through PLC.
  • On-line measurement of produced water quality and operating conditions.



UF



Membench UF-400000

Country: Spain | Client: Dynasol Elastómeros S.A.

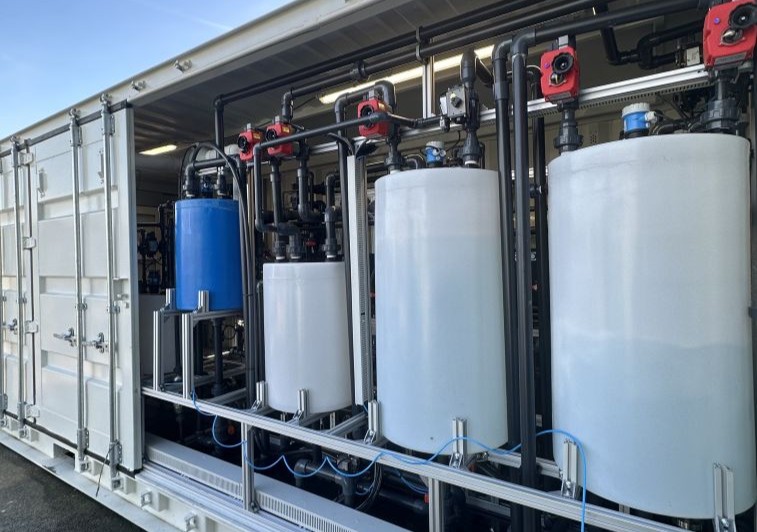

  • Treatment flowrate: 1 – 2 m3/h.
  • Membrane module: dead-end hollow fiber in spiral wound.
  • Pretreatment via filtration in porous media.
  • Automatized operation through PLC.
  • On-line measurement of produced water quality and operating conditions.
